Custom Busbar Manufacturing
ILF manufactures custom busbars for electrical, power distribution and industrial applications, working from customer-supplied drawings and specifications.

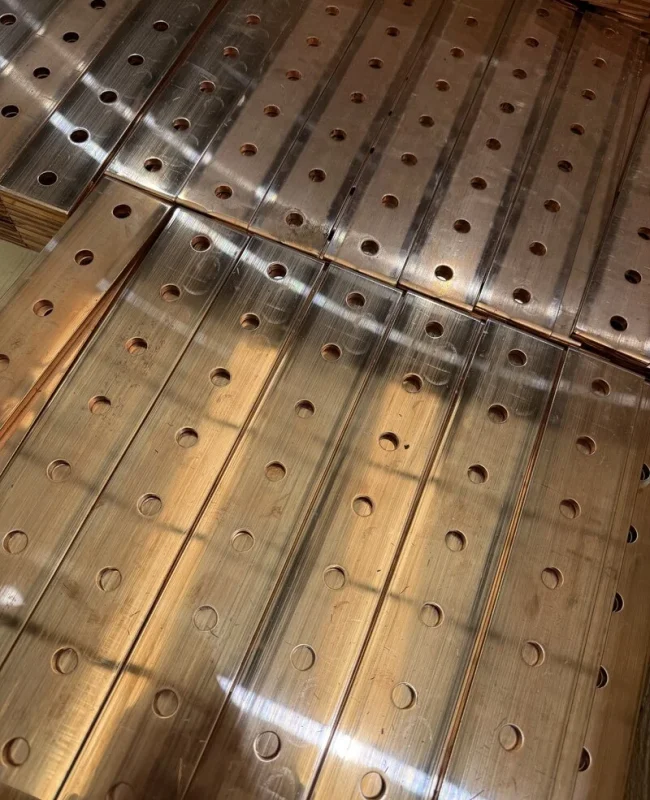

Our in-house production capabilities allow us to cut, punch, bend and machine busbars to the dimensions and requirements shown on your approved drawings. We support everything from individual samples and low-volume requirements through to repeat production runs.
With material supply and manufacturing managed together, ILF provides a straightforward route from approved drawing to finished busbar.
Manufacturing Busbars to Your Drawings
Custom busbars are manufactured to suit the dimensions, hole positions, bends and other requirements specified within the customer’s approved drawing.
Whether the requirement involves a straightforward cut and punched bar or a more complex component requiring multiple bends and machining operations, our team can manage the manufacturing process from material preparation through to finished production.
Discuss Your Requirements with an Expert Today
Why Choose ILF for Busbar Manufacturing?
Our combination of material supply and in-house manufacturing capabilities allows us to produce custom busbars accurately and efficiently from customer-approved drawings.
2
In-House Production

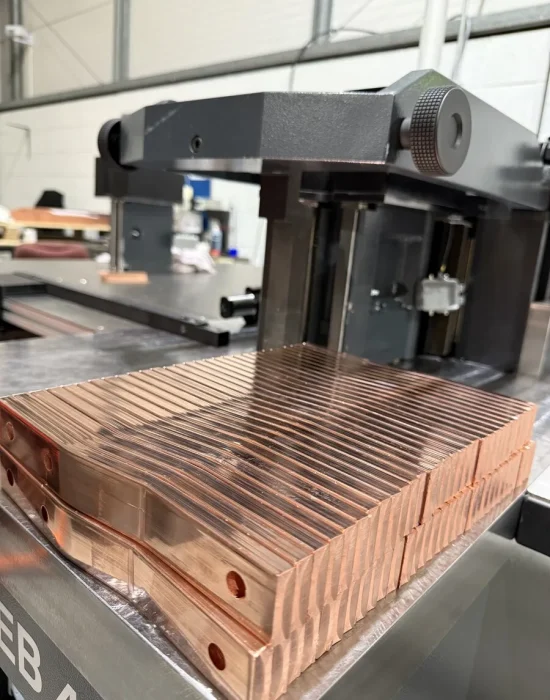

Busbars can be cut, punched, bent and CNC machined using our manufacturing equipment, allowing multiple production stages to be managed through one supplier.
1
Manufactured to Your Drawing
We work from your drawings and specs, manufacturing each busbar to the dimensions, bends, hole positions and production requirements provided.
3
Sample Production
Where required, samples can be manufactured from the approved drawing before progressing to larger production quantities.
4
Repeatable Manufacture
Once the manufacturing requirements have been established, we can support repeat production orders with a focus on accuracy, consistency and dependable supply.
Busbar Production Process
| Stage | What This Includes |
|---|---|
| Customer Drawing | You provide the approved drawing and specification for the required busbar |
| Manufacturing Review | Our team reviews the drawing to establish the required material, dimensions and manufacturing processes |
| Material Preparation | Copper or aluminium material is prepared in accordance with the supplied specification |
| Sample Production | Samples can be manufactured where required before progressing to larger quantities |
| Cutting, Punching & Bending | Busbars are processed using the appropriate cutting, punching and bending operations |
| CNC Machining | Additional machining can be completed where required by the supplied drawing |
| Finishing | Plating, coating or other specified finishing processes can be incorporated where required |
| Production & Supply | Finished busbars are manufactured and supplied in the agreed quantities |
From Drawing to Finished Busbar
Supply Your Drawing
Send us your approved drawing, specification and required quantities so we can establish the manufacturing requirements for the component.
Confirm Requirements
We review the information supplied to confirm the material, dimensions, quantities and production processes required to manufacture the busbar.
Manufacture
Your busbars are produced using the appropriate cutting, punching, bending and CNC machining processes in accordance with the supplied drawing.
Deliver
We can support individual samples, low-volume requirements and repeat production orders, supplying finished busbars to the agreed specification.
Busbar Design FAQs
Yes. We manufacture custom busbars from customer-supplied drawings and specifications, following the dimensions and manufacturing requirements provided.
No. ILF manufactures busbars to customer-approved drawings and specifications. The customer remains responsible for the design and suitability of the busbar for its intended application.
Our production capabilities include cutting, punching, bending and CNC machining. Additional finishing processes can also be incorporated where specified.
Yes. Where required, we can manufacture a sample from the approved customer drawing before progressing to larger production quantities.
Yes. We manufacture both copper and aluminium busbars, subject to the material grade and specification required by the customer.
Yes. Our cutting, punching, bending and machining capabilities allow us to manufacture both straightforward and more complex busbar components, provided the required dimensions and specification are supplied within the approved drawing.
